                所屬品牌:華隆
所屬類別:雕刻設備
 0594-2197723
0594-2197723 hualongmc@163.com
hualongmc@163.com采購可留言電話號碼,我們會與您聯系! 點擊進入1688查看更多產品
Purchase please leave a message phone and email, we will contact you!

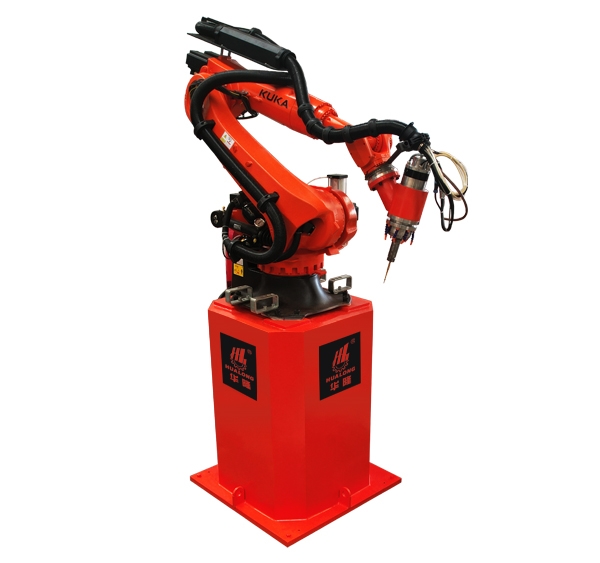

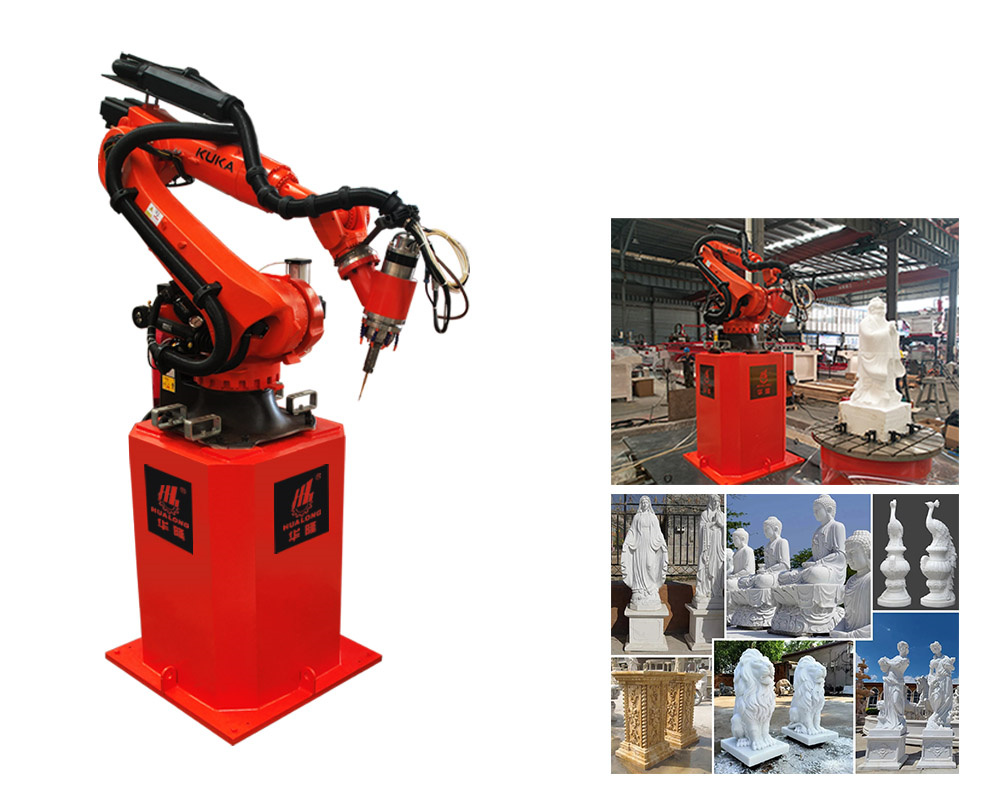

| 技術參數 | TECHNICAL DATA | HLRB-7A3D 7 Axis Robot |
| 實際負載 | Actual Load | 210 kg |
| 最大臂展 | Max. Armspread | 2700 mm |
| 最大加工尺寸 | Max. Processable Size | 1000x2500mm |
| 回轉工作臺直徑 | Diameter of Rotation Worktable | 1000 mm |
| 主軸功率 | Spindle power | 15 kw |
| 最大主軸轉速 | Max. Rotating Speed of Spindle | 18500 rpm/min |
| 重復定位精度 | Repeat positioning accuracy | < +/- 0.06 mm |
| 支持的工具 | Tools supported | 粗加工鋸/銑刀/立銑刀/拋光輪 |
| 軟件 | Offline Software | Sprut CAM |
| 軸 1 的運動范圍和速度 | Motion range & Speed of Axis 1 | +/-185° 86°/s |
| 軸 2 的運動范圍和速度 | Motion range & Speed of Axis 2 | 0°/-146° 84°/s |
| 軸 3 的運動范圍和速度 | Motion range & Speed of Axis 3 | +155°/ -119° 84°/s |
| 軸 4 的運動范圍和速度 | Motion range & Speed of Axis 4 | +/-350° 100°/s |
| 軸 5 的運動范圍和速度 | Motion range & Speed of Axis 5 | +/-125° 110°/s |
| 軸 6 的運動范圍和速度 | Motion range & Speed of Axis 6 | +/-350° 184°/s |
| 軸 7 的運動范圍和速度 | Motion range & Speed of Axis 7 | 無限旋轉 84°/s |
溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯系我們。
