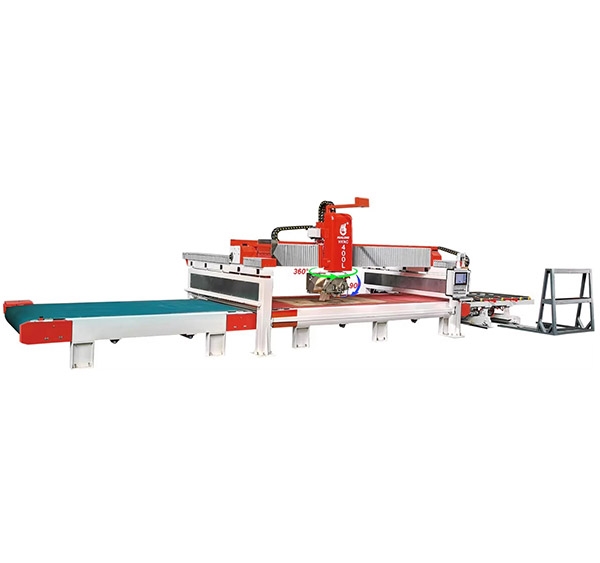

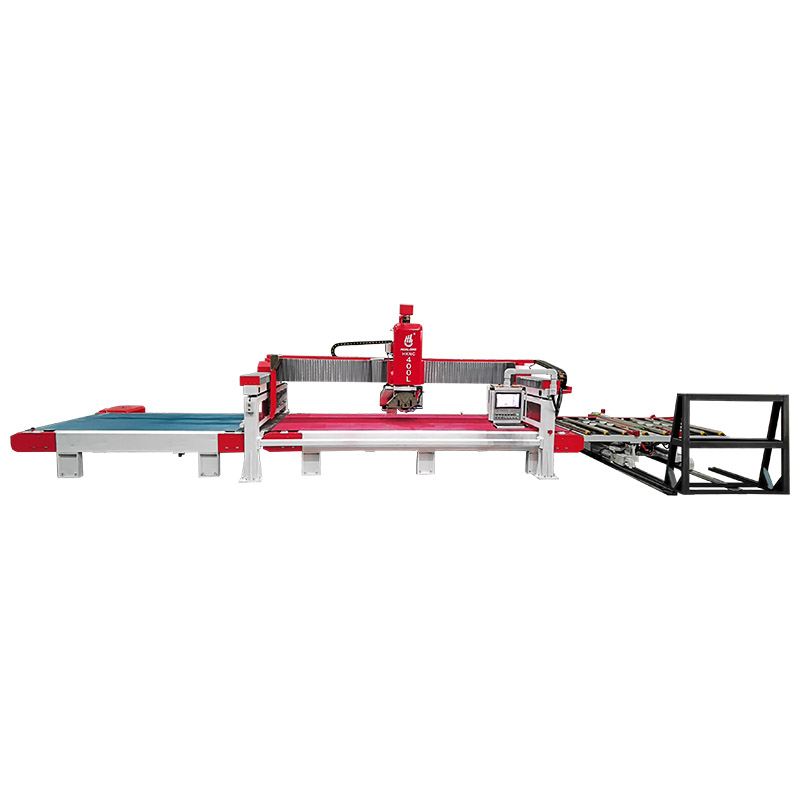

HKNC-400L CNC Bridge Saw with ConveyorsHKNC-400L 流水線橋式切割機
領跑智能制造新“石”代
HKNC-400L CNC Bridge Saw with ConveyorsHKNC-400L 流水線橋式切割機
所屬品牌：
所屬類別：產品庫
想了解更多相關產品信息，請聯系我們！
0594-2197723
hualongmc@163.com
- 產品說明
- 技術參數
帶輸送裝置的數控橋式鋸床
HKNC-400L 是一款高產量的全數控控制橋梁鋸，專為實現最大切割速度而設計，能夠消除所有裝載板坯、編程作業以及卸載部件所造成的停機時間。
該橋梁鋸具備全 5 軸數控鋸的所有功能和靈活性，還配備了專利的部件切割與移動裝置——該裝置集成在一個永不停歇工作的實際切割線上。自動板坯裝載機從側面持續為機器供料，與驅動板坯通過鋸下方切割區域并從另一側卸下切割件和殘余物的傳送帶同步運行。
主要特點
1) 自動裝載平臺 - 節省裝載時間和人力。
2) 由于激光控制傳送帶，工件定位迅速且高效。
3) 通過人工智能視覺技術自動檢測板坯位置。
4) 易于編程和操作 - 可以遠程編程、提前編程或在機器控制狀態下幾分鐘內完成編程，同時機器仍在切割過程中。
5) 自動板坯切割優化的嵌套軟件，可最大限度減少浪費并優化加工時間。
CNC Bridge Saw with Conveyors
HKNC-400L is a high-production full CNC-controlled bridge saw designed for the maximum speed in cutting and eliminating all down times for loading slabs, programming jobs and unloading pieces.
The bridge saw is equipped with all of the functionality and versatility of a full 5-axis CNC saw, also equipped with the patented manipulator of the pieces Cut & Move — integrated in a real cutting line that never stops working. An automatic slab loader continuously feeds the machine from the side, synchronized with conveyor belts that drive the slabs through the cutting area under the saw and outfeed cut pieces and remnants from the other side.
Main Features
1) Automatic loading platform – saving loading time and labor.
2) Quick automatic workpiece positioning thanks to the laser that controls the conveyor belt.
3) Slab position automatically detected by Artificial Vision.
4) Easy to program and operate – It can be programmed remotely, in advance or at the machine control in a few minutes while the machine is cutting.
5) Nesting software for automatic slab cutting optimization, minimize the waste and optimize the processing time.
|
參數
|
NAME
|
單位 UNIT
|
HKNC-400L
|
|
鋸片直徑
|
Diameter of saw blade
|
mm
|
350-400
|
|
工作臺規格
|
Carriage stroke (X-axis)
|
mm
|
3500
|
|
最大切割尺寸
|
Carriage stroke (Y-axis)
|
mm
|
2000
|
|
加載器尺寸
|
Loader size
|
mm
|
3076 x 3000
|
|
主輸送機尺寸
|
Main conveyor size
|
mm
|
12290 x 2100
|
|
輸出臺尺寸
|
Output conveyor size
|
mm
|
8490 x 2100
|
|
鋸片轉速
|
Blade rotation speed
|
rpm
|
0-3500
|
|
最大加工厚度
|
Max. cutting thickness
|
mm
|
80
|
|
最大升降行程
|
Max. lifting stroke
|
mm
|
250
|
|
吸盤最大舉升重量
|
Max. lifting weight by sunction cups
|
kg
|
200
|
|
主機功率
|
Power of main motor
|
kw
|
15
|
|
刀架往復電機功率
|
Power of cutter frame reciproctating motor
|
kw
|
2
|
|
大梁移動電機功率
|
Power of crossbeam shifting motor
|
kw
|
1.1
|
|
液壓站電機功率
|
Power of hydraulic station motor
|
kw
|
2.2
|
|
升降電機功率
|
Power of lifting motor
|
kw
|
0.85
|
|
總功率
|
Gross power
|
kw
|
24.75
|
|
耗水量
|
Water consumption
|
m3/h
|
2
|
|
總重量
|
Gross weight
|
kg
|
13000
|
|
機床最大尺寸
|
Dimensions (L x W x H)
|
mm
|
13100x3685x3250
|
